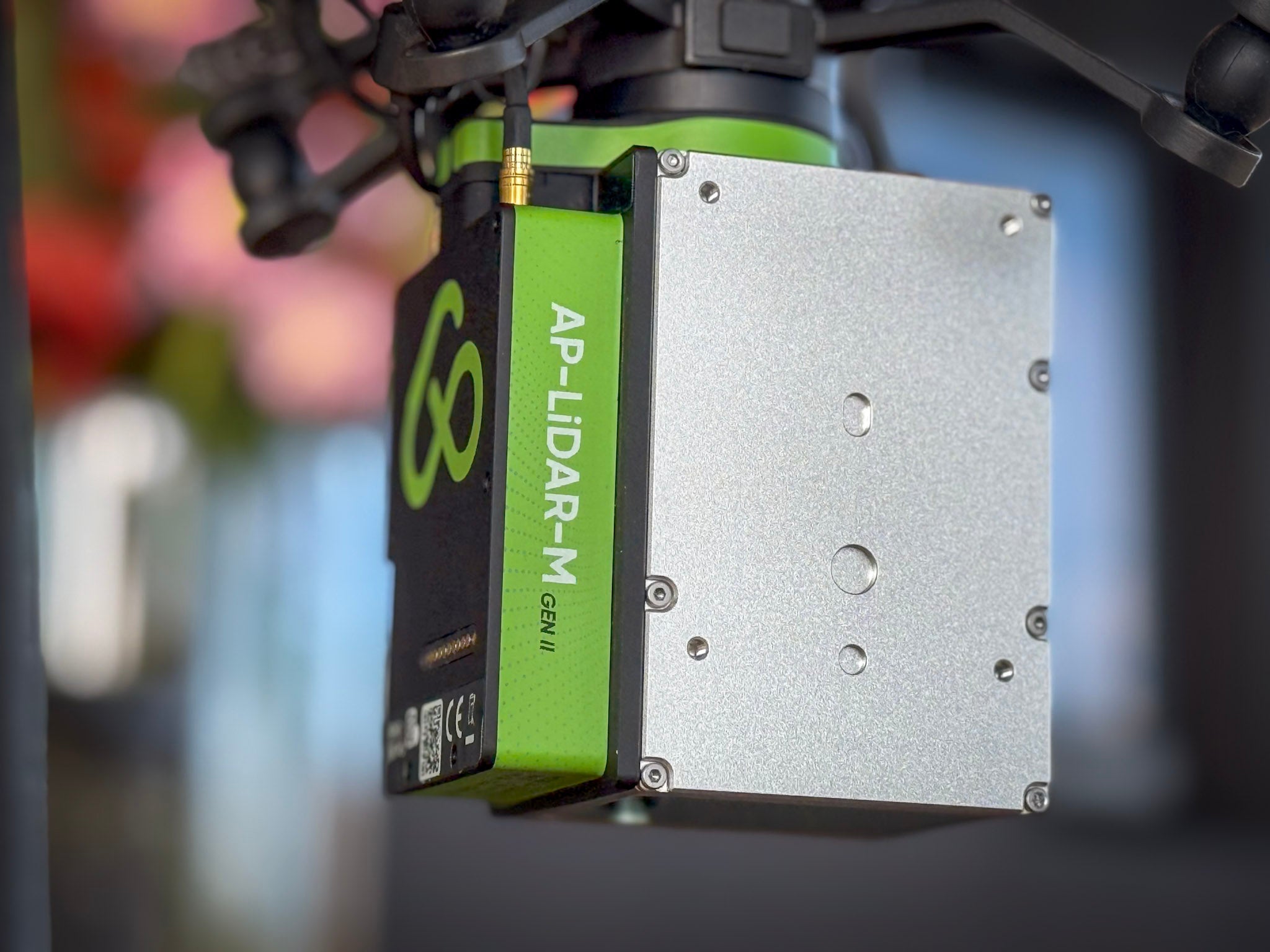

AP-LiDAR-M Gen-II
Experience the power of our state-of-the-art LIDAR sensor, delivering exceptional survey-grade point clouds with unmatched performance.
Elevate your projects with the power of the Dual Antenna GNSS System and our seamless workflow.
Powered by our proprietary AP-SLAM, LiDAR data gets processed on an iPad after landing, giving immediate results while on the field. AP-LiDAR-M Gen II offers real-time processing with full density and accuracy, with no calibration needed.

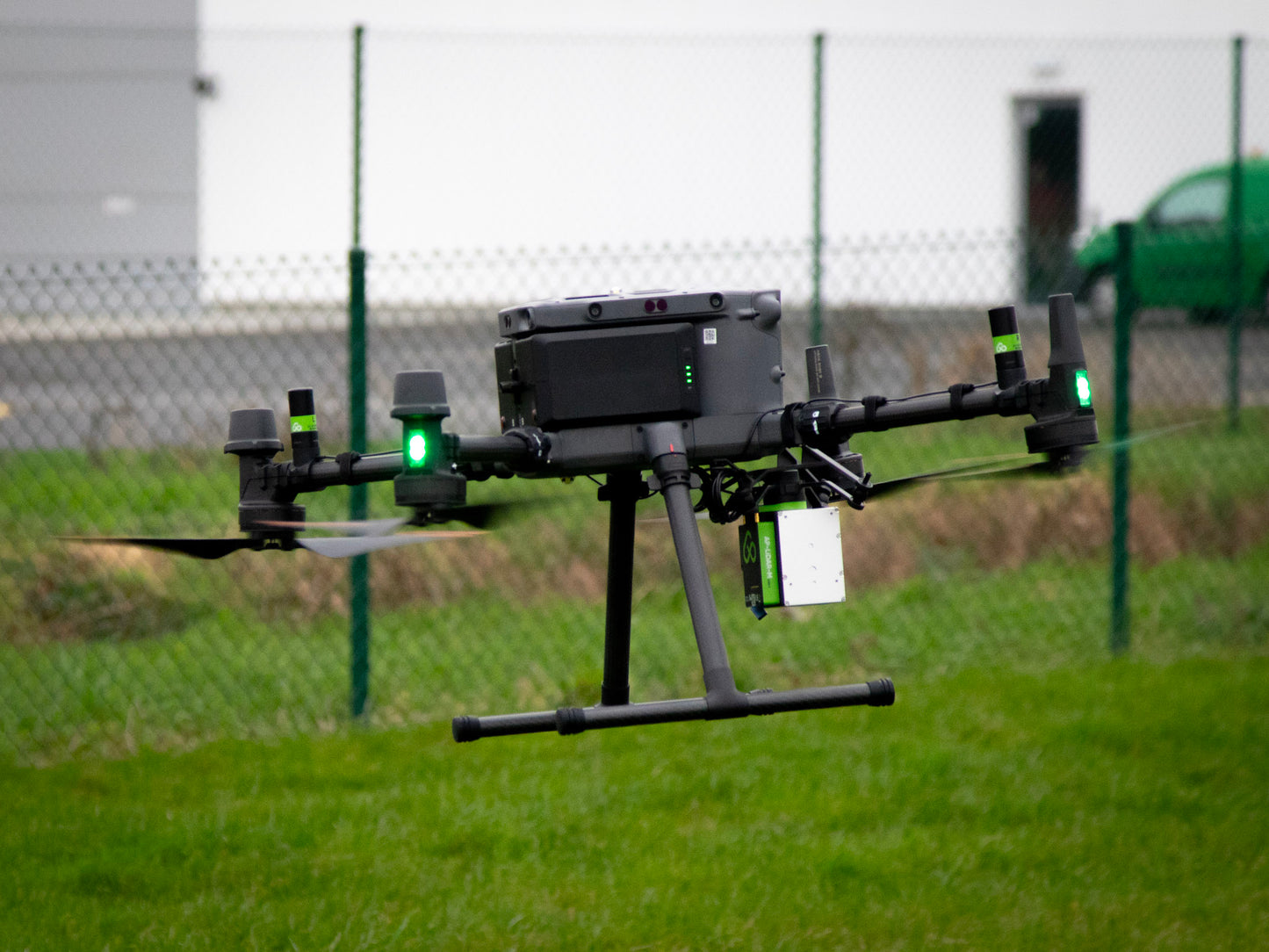

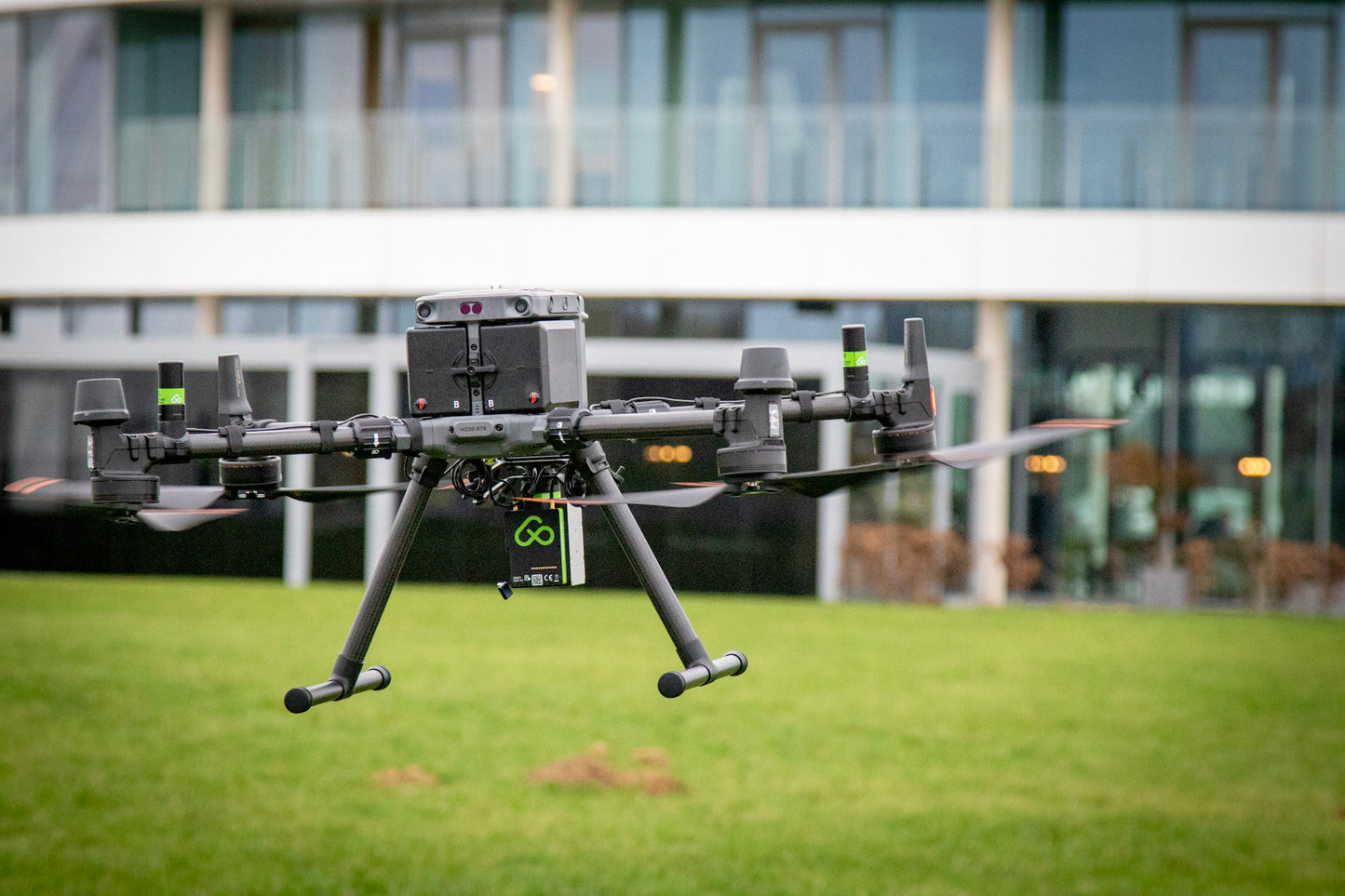

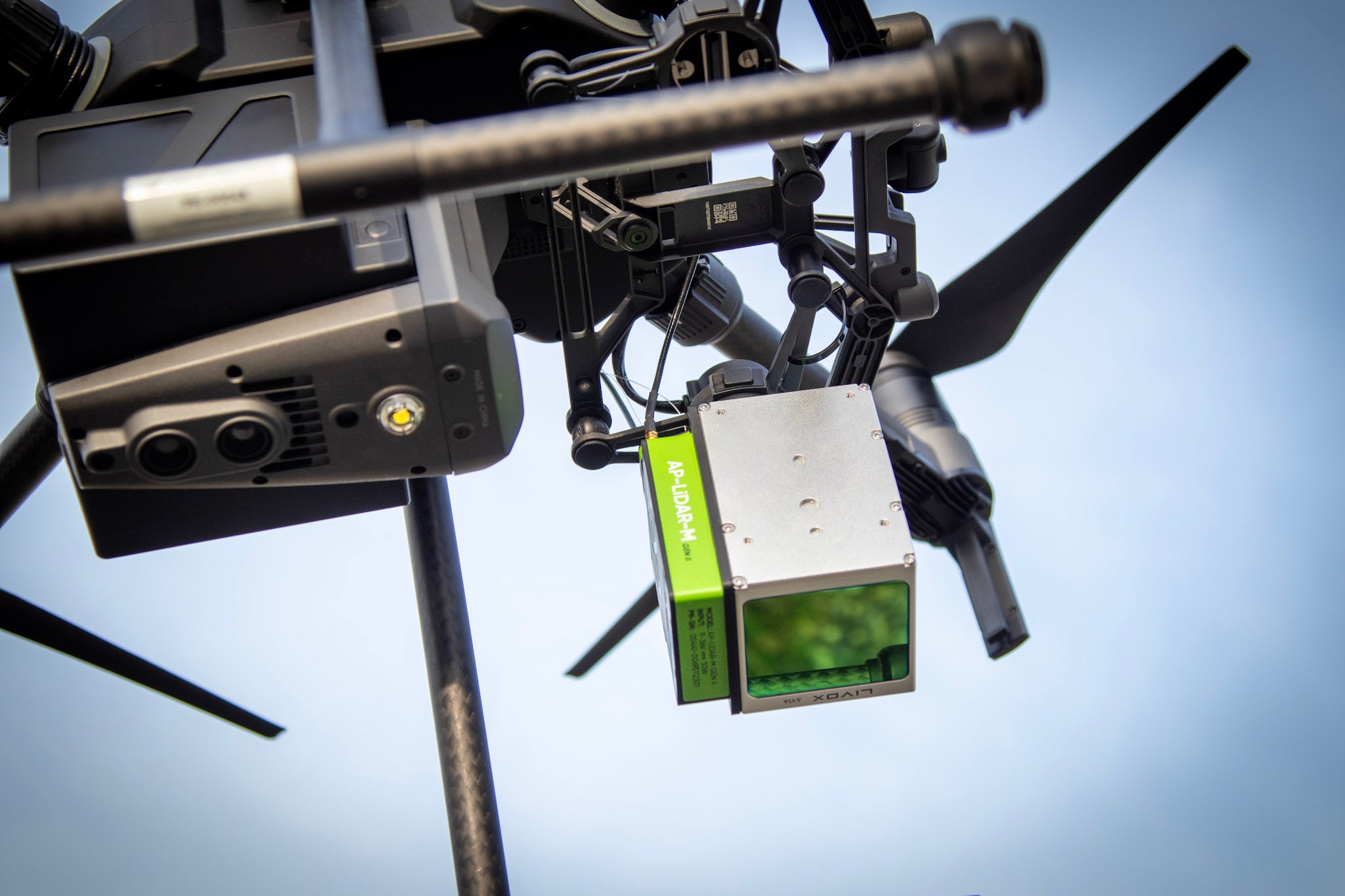

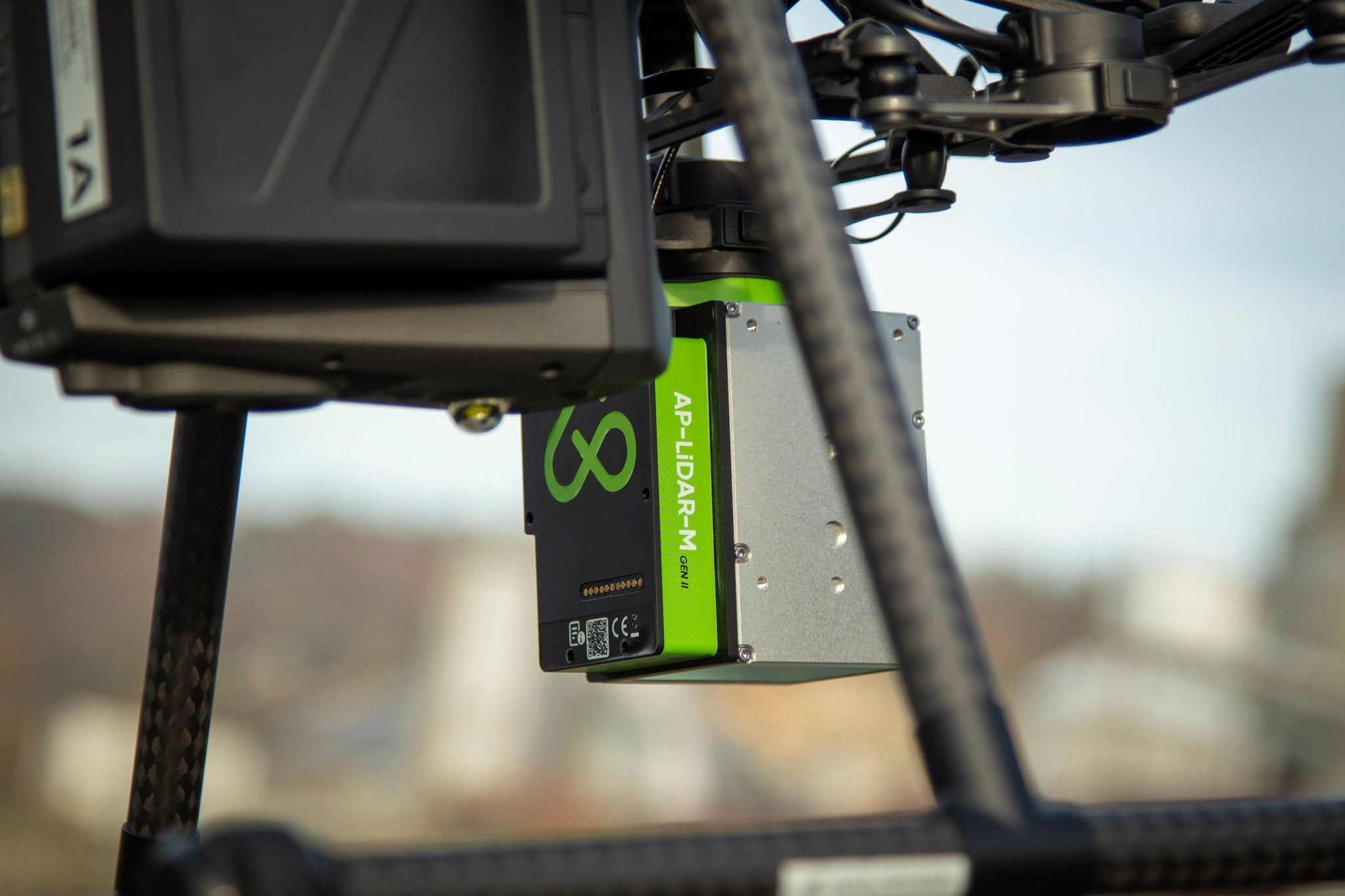

Immerse yourself in its ultra-light design, seamlessly integrated into the DJI M350 or Freefly ASTRO drones for maximum potential and versatility.
AP-SLAM
A continuous layer of our proprietary AP-SLAM algorithm runs on-top of the INS for an unmatched performance and accuracy.

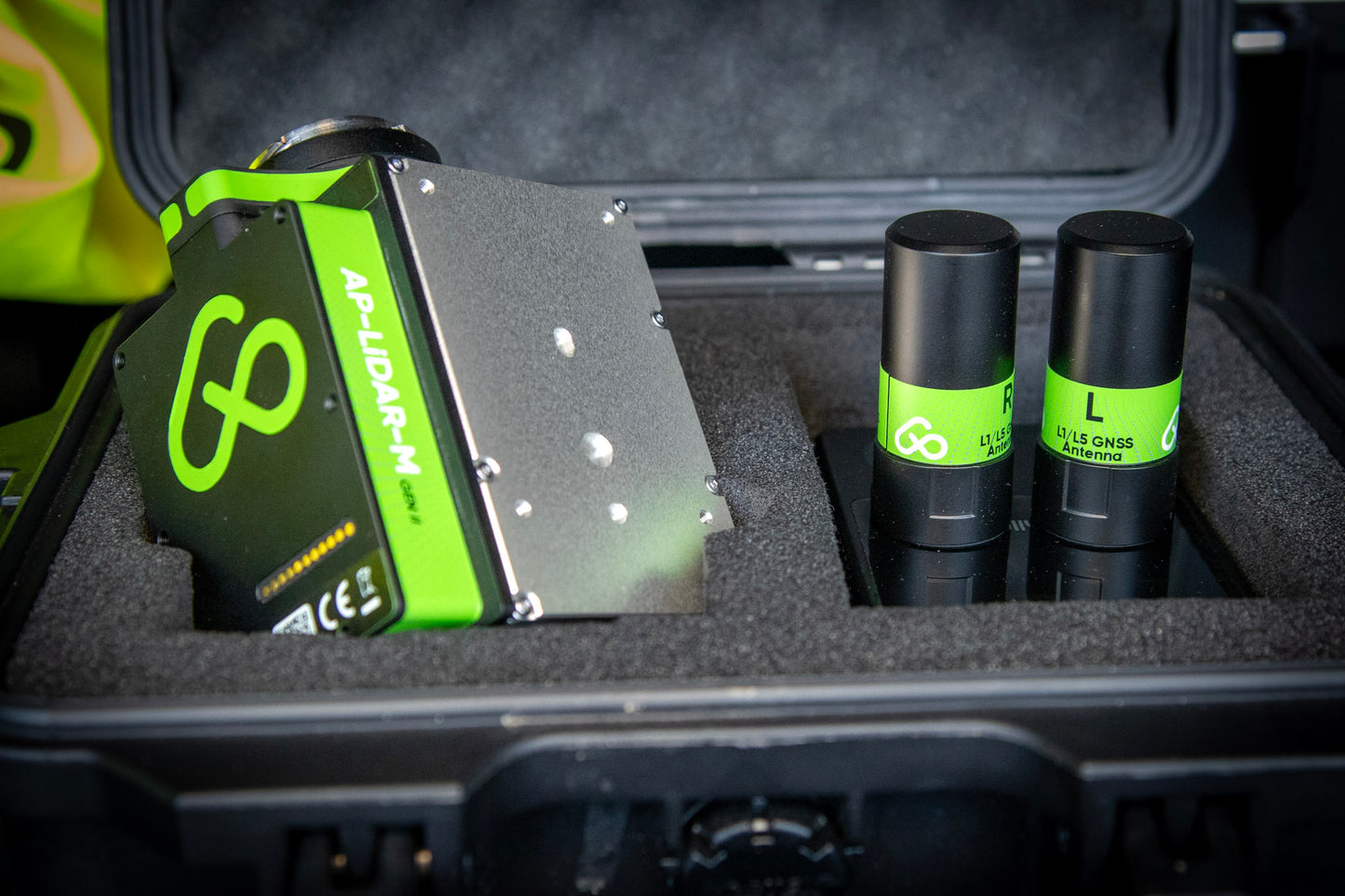

Dual Antenna L1/L5 GNSS
Consistently precise point clouds in even the most challenging environments without the need for calibration. Empower real-time LiDAR data processing with complete point density and accuracy.± 3 cm accuracy
Achieve precise scans with an exceptional survey-grade accuracy of up to 3 cm.
Triple Return
Ensure complete point cloud coverage of the ground even in the presence of dense vegetation and tree canopies.
70° x 77° FOV
Generate comprehensive point clouds by capturing every intricate detail with our focused field of view, guaranteeing nothing escapes your attention.
450 m
Extensive LiDAR range to enhance mission performance.
REC Button
Simplifies the data acquisition process, providing users with immediate control over data capture and ensuring the swift integration of LiDAR technology into existing operational workflows.
USB-C
Access and transfer high volumes of data effortlessly, simplifying the data analysis by enabling a direct connection from the sensor to the iPad at a high data transfer rate of 400 MB/s.
Expansion port
Open a world of possibilities. Connect a thermal module for advanced temperature sensing, a multispectral module for detailed light analysis, or a color module for accurate color detection. The choice is yours.
690 grams
Experience the ultimate in portability with our ultra-light LiDAR sensor. Take it with you wherever you go and unleash its potential on a variety of drones.
100% Designed, Manufactured and Coded in Europe.
iOS APP
Full control and insights of your LiDAR data, from your device.
Process the LiDAR data into into .las files directly on your iPad while on the field. Post-process with PPK and align to ground control points for enhanced accuracy. Export and work in any coordinate reference system.
Import and visualise LiDAR files from any source, measure volumes, areas and much more.
In 3 simple steps you can go from data capturing to customer deliverables within the same convenient workflow.
Capture
Connect AP-LiDAR-M to an iPad via the remote controller of the drone. Our iOS app gives full control of the data capture process and drone flight performance with a live view of the point cloud.
Analyse
After capturing the data, our iOS app will process it to create a full density point cloud that can immediately being analysed. From volumetric measurements to ground control point alignment, it gives you the tools to extract the information needed.
Share
Easily share the information straight from your device. An intuitive workflow that makes LiDAR data analysis simple and convenient.
Unlock new possibilities for many industries with our cutting-edge LiDAR sensor
Utilities Mapping
Constructions Site Surveying
Railway Track Mapping
Oil & Gas Surveying
Agriculture & Forestry Monitoring
Open Pit Mining Operations
SPECIFICATIONS
LiDAR sensor:
- 6 channels LiDAR.
- 450 m range.
- 70° x 77° field of view.
- 3 laser returns.
- ± 3 cm accuracy.
- 720.000 points per second.
INS:
- Internal precision MEMS unit with 2°/hr gyroscopes.
- Dual Antenna L1/L5 GNSS, GPS, GLONASS, Galileo and BeiDou, RTK and PPK capable.
- 2000 Hz INS solution.
SLAM Mapping:
A continuous layer of our proprietary AP-SLAM algorithm runs on top of the INS for unmatched performance and accuracy.
Outputs:
Full resolution point cloud in industry-standard file formats [.las] with attributes such as range, reflectivity, and return number.
Storage:
External USB-C Drive Memory with a transfer rate of 400 MB/s.
Physical:
- Operating temperature range of -10 °C to 40 °C with constant airflow.
- 9V – 36V DC input voltage.
- 20 W typical, 30 W peak.
- 83 x 65 x 91 mm.
- 690 grams.
Mounts and Accessories:
- Can be mounted on drones such as the DJI M300, DJI M350, and Freefly ASTRO.
- Compatible with other drones with our AP Universal Mount.
FULL SPECIFICATIONS
-
Specifications
SLAM Mapping Proprietary AP-SLAM algorithm for unmatched performance and accuracy IMU Internal precision MEMS unit, 2/hr gyroscopes GPS Dual-Band L1, L2, GPS, GLONASS, Galileo and BeiDou, RTK and PPK capable Outputs Full resolution point cloud in industry standard file formats Point Cloud Attributes Range, reflectivity and return number File Formats .las Storage External micro SD-Card up to 512 GB Software Updates Over-the-air via user interface -
Physical
Operating temperature -10 C to 40 C with constant airflow Input voltage 9V - 36V Power consumption 25W typical, 36W peak Size 87 x 95 x 136 mm Weight 590 grams -
Mounts and Accessories
Possibilities Drone, robot, vehicle, handheld or bike Drone compatibility DJI M210, DJI M300, DJI M350, Freefly ASTRO Drone mounts DJI SKYPORT, AP Universal Mount Tripod thread UNC 1/4-20 Other Mobile Mapping Kit
